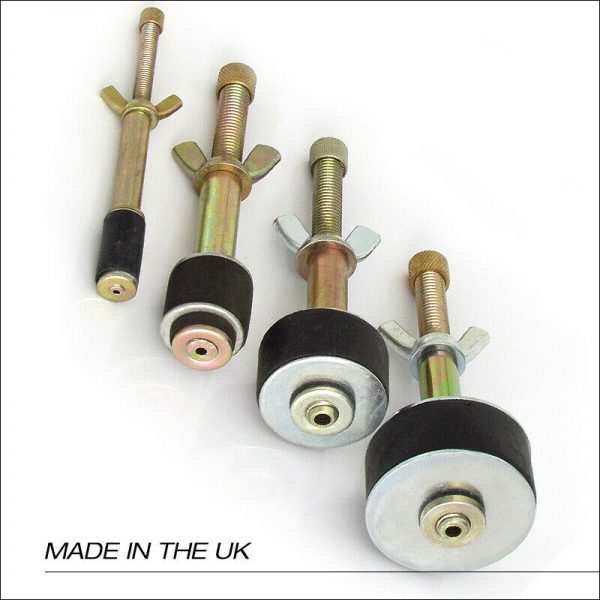

SMALL PIPES TEST PLUGS
SMALL PIPES TEST PLUGS - Image 2

SMALL PIPES TEST PLUGS

Price range: £11.25 through £12.95

SMALL PIPES TEST PLUGS.

Add to Wishlist
Add to Wishlist
SKU: N/A Category:

Description

For use with small bore copper, steel or MDPE/HDPE piping, suitable for Pressure Testing up to 4bar.
Suitable also for telecommunications, refrigeration, air conditioning, heating, process plant and food manufacturing.
Steel components are zinc plated to 90 hours salt spray test.

Pipe Size Internal Nominal Diameter Will Fit Pipes With Internal Diameter Minimum Insertion into Pipe Overall length Diameter of waterway Maximum allowable back pressure Approx. Weight
Metric Imperial Minimum Maximum
12mm 0.5″ 12mm 16mm 66mm 110mm 4mm 50psi 40gm
19mm 0.75″ 19mm 26mm 66mm 110mm 6mm 50psi 50gm
25mm 1″ 25mm 37mm 66mm 110mm 6mm 50psi 70gm
32mm 1.25″ 31mm 39mm 66mm 110mm 6mm 50psi 90gm
40mm 1.5″ 38mm 48mm 66mm 110mm 6mm 30psi 130gm

Additional information

Weight N/A
Dimensions N/A
size

0.5" [ 12mm] LONG STEM TEST PLUG, 0.75" [ 19mm] LONG STEM TEST PLUG, 1.25" [ 32mm] LONG STEM TEST PLUG, 1.5" [ 40mm] LONG STEM TEST PLUG, 1" [ 25mm] LONG STEM TEST PLUG
