ALUMINIUM TEST DOUBLE SEAL
£21.95 – £389.50

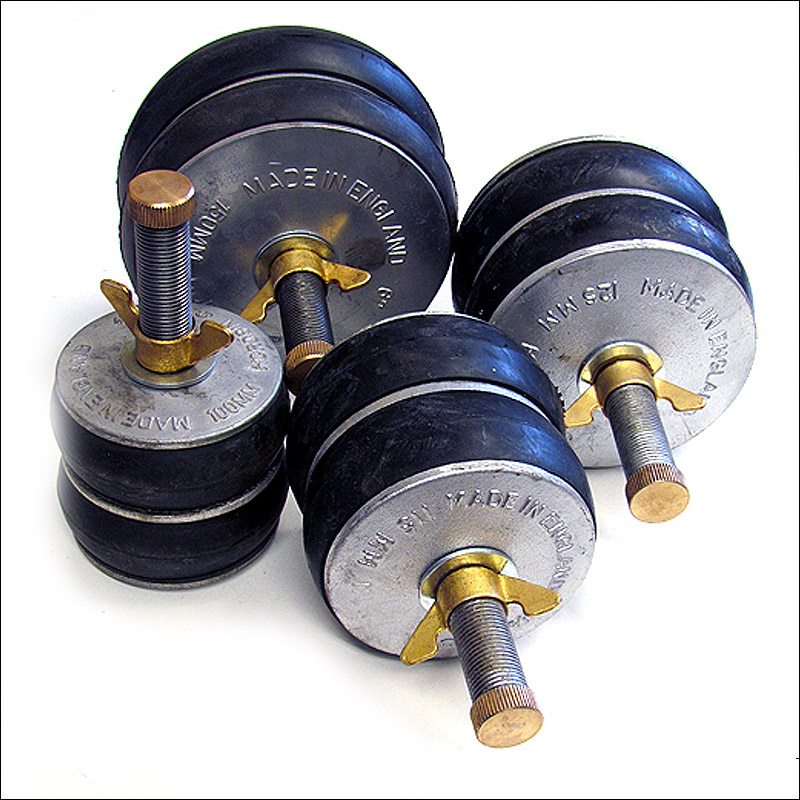

DOUBLE SEAL ALUMINIUM TEST PLUG
SKU: N/A Category: METAL TEST PLUGS
Description
Double Seal Test Plugs: Durable Aluminium Testing Plug with Single Rubber Seal for carrying out Water and Air Tests in all types of Pipelines.
Aluminium Plates combine strength with lightness, and will not rust.
Pressure Plates are made of aluminium gravity die-castings. Rubber Seals are commercial grade rubber mouldings. Chemical resistant Rubber Seals can be supplied.
Thrustwashers are fitted as standard on all sizes. All steel components are zinc plated – corrosion resistant to 90 hours salt spray test
Aluminium Plates combine strength with lightness, and will not rust.
Pressure Plates are made of aluminium gravity die-castings. Rubber Seals are commercial grade rubber mouldings. Chemical resistant Rubber Seals can be supplied.
Thrustwashers are fitted as standard on all sizes. All steel components are zinc plated – corrosion resistant to 90 hours salt spray test
For any product enquiries, please call us on: 07508 196 855
It is the responsibility of the installer / operator to make sure the maximum allowed back pressure are not exceeded.
Pipe Size Internal Nominal Diameter | Will Fit Pipes With Internal Diameter | Minimum Insertion into Pipe | Overall length | Diameter of waterway | Maximum allowable back pressure | Approx. Weight | ||
Metric | Imperial | Minimum | Maximum | |||||
40mm | 1 1/2″ | 38mm | 50mm | 90mm | 150mm | 1/2″ | 30p.s.i | 0.28 kg |
50mm | 2″ | 49mm | 62mm | 90mm | 150mm | 1/2″ | 30p.s.i | 0.33 kg |
65mm | 2 1/2″ | 62mm | 77mm | 90mm | 150mm | 1/2″ | 30p.s.i | 0.43 kg |
75mm | 3″ | 73mm | 89mm | 90mm | 150mm | 1/2″ | 20p.s.i | 0.47 kg |
90mm | 3 1/2″ | 84mm | 103mm | 106mm | 150mm | 1/2″ | 15p.s.i | 0.56 kg |
100mm | 4″ | 94mm | 110mm | 94mm | 150mm | 1/2″ | 10p.s.i | 0.60 kg |
114mm | 4 1/2″ | 112mm | 130mm | 112mm | 150mm | 1/2″ | 10p.s.i | 0.75 kg |
125mm | 5″ | 125mm | 142mm | 120mm | 150mm | 1/2″ | 10.p.s.i | 1.00 kg |
150mm | 6″ | 146mm | 168mm | 100mm | 150mm | 1/2″ | 10p.s.i | 1.20 kg |
175mm | 7″ | 175mm | 200mm | 125mm | 225mm | 1″ | 7p.s.i | 1.92 kg |
200mm | 8″ | 193mm | 220mm | 128mm | 225mm | 1″ | 7p.s.i | 2.50 kg |
225mm | 9″ | 220mm | 240mm | 130mm | 225mm | 1″ | 7p.s.i | 3.40 kg |
250mm | 10″ | 245mm | 270mm | 146mm | 225mm | 1″ | 7p.s.i | 4.10 kg |
275mm | 11″ | 274mm | 328mm | 200mm | 225mm | 1″ | 7p.s.i | 5.95 kg |
300mm | 12″ | 295mm | 325mm | 154mm | 225mm | 1″ | 7p.s.i | 6.20 kg |
325mm | 13″ | 325mm | 360mm | 154mm | 225mm | 1″ | 5p.s.i | 9.00 kg |
350mm | 14″ | 350mm | 385mm | 220mm | 225mm | 1″ | 5p.s.i | 11.05 kg |
375mm | 15″ | 370mm | 410mm | 220mm | 225mm | 1″ | 5p.s.i | 9.50 kg |
400mm | 16″ | 390mm | 435mm | 220mm | 325mm | 1″ | 5p.s.i | 10.25 kg |
450mm | 18″ | 445mm | 495mm | 300mm | 425mm | 1″ | 5p.s.i | 12.40 kg |
500mm | 20″ | 495mm | 550mm | 300mm | 425mm | 2″ | 5p.s.i | 29.00 kg |
525mm | 21″ | 495mm | 550mm | 300mm | 425mm | 2″ | 3p.s.i | 29.00 kg |
600mm | 24″ | 595mm | 650mm | 300mm | 425mm | 2″ | 3p.s.i | 33.00 kg |
Additional information
Weight | N/A |
---|---|
Dimensions | N/A |
size | 1.5" [ 40MM ] DRAIN TEST PLUG, 10" [ 250MM ] DRAIN TEST PLUG, 14" [ 350MM ] DRAIN TEST PLUG, 2.5" [ 65MM ] STEEL TEST PLUG, 2" [ 50mm ] DRAIN TEST PLUG, 3.5" [ 90MM ] DRAIN TEST PLUG, 3" [ 75MM ] DRAIN TEST PLUG, 4" [ 100MM ] DRAIN TEST PLUG, 6" [ 150MM ] DRAIN TEST PLUG, 9" [ 225MM ] DRAIN TEST PLUG |
