COBRA DUCT CABLE HIGH CAPACITY

£651.00 – £902.00

COBRA DUCT CABLE HEAVY DUTY

Add to Wishlist
Add to Wishlist
SKU: N/A Category:

Description

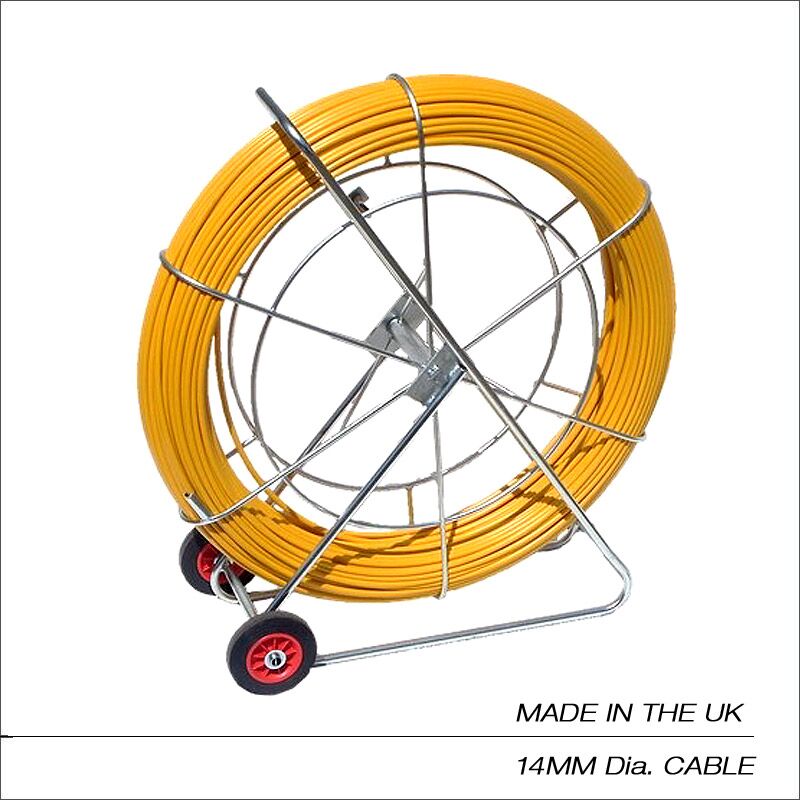

COBRA DUCT CABLE HIGH CAPACITY 14MM

High quality glass fibre reinforced helically wound epoxy rod giving good adhesion properties for the outer polyethylene coating.
This construction gives excellent bending elasticity and is an ideal and fast way of installing draw ropes, winch ropes and lightweight
cables into ducts, ready for cable pulling operations.
Supplied on a free standing frame for easy handling.
Supplied on a galvanised steel frame, complete with two wheels to the rear for easy handling
Rod comes complete with end connectors and guide tip
Zinc Plate finish
Also available as Rod Only spare rod refill
Non Standard Lengths available upon request.

Frame Sizes:
 Frame size: 127cms x 52cms x 130cms

Rod comes complete with end connectors and guide tip
Zinc Plate finish
Also available as a Rod Only spare rod refill
Non standard lengths available upon request

Technical Specification


11MM DIA x 150MTR Rod on Reel Weight: 65Kgs

11MM DIA x 200MTR Rod on Reel Weight: 77Kgs

14MM DIA x 250MTR Rod on Reel Weight: 87Kgs

14MM DIA x 300MTR Rod on Reel Weight: 99Kgs

14MM DIA x 350MTR Rod on Reel Weight: 111Kgs


A full range of accessories are also available, please see Conduit Rod Accessories for more details.
For any product enquiries, please call us on: 07508 196 855

Additional information

Weight N/A
Dimensions N/A
size

14MM DIA x 150MTR, 14MM DIA x 200MTR, 14MM DIA x 250MTR, 14MM DIA x 300MTR, 14MM DIA x 350MTR
